DESCRIPTION

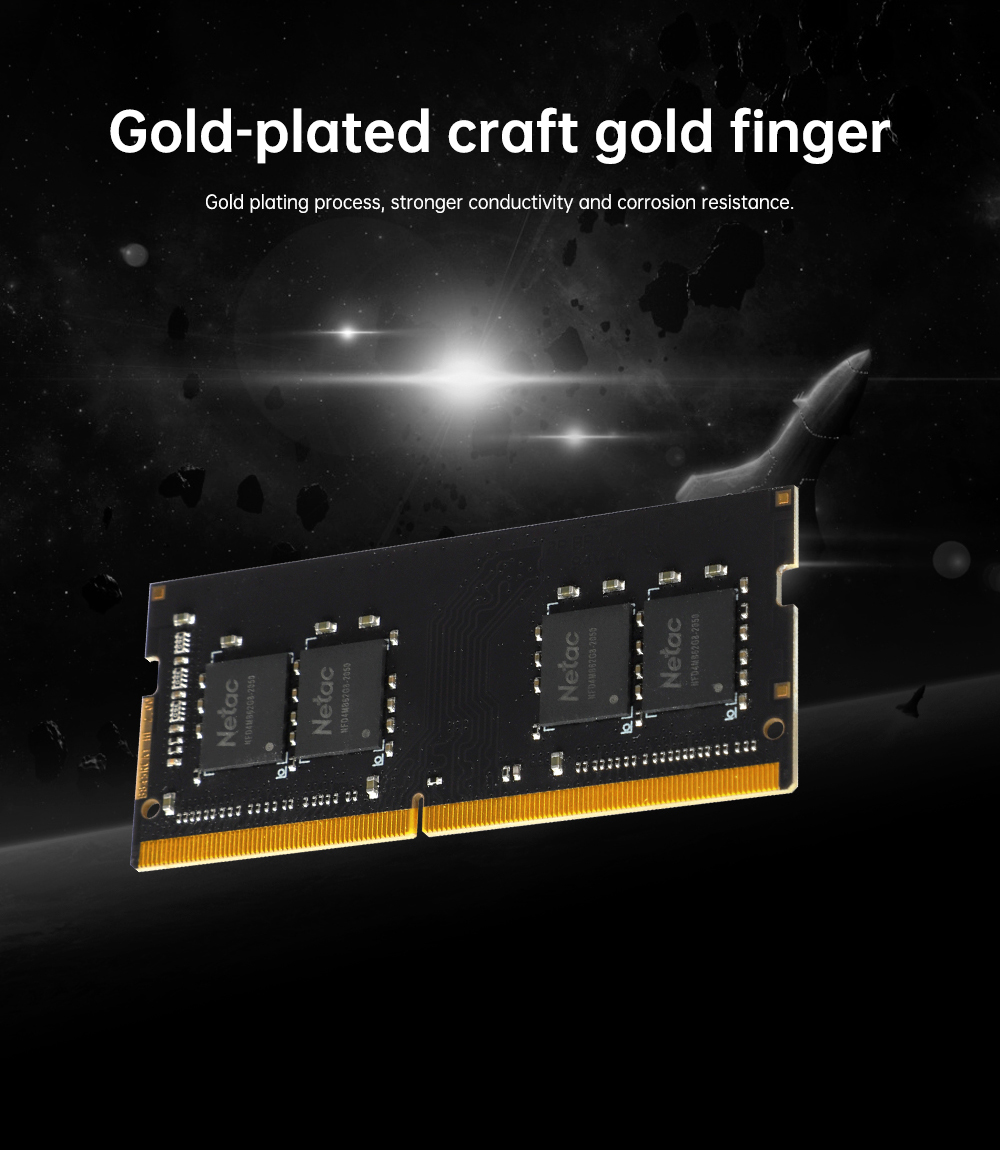

NTBSD4N26SP-08 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, non-ECC,memory module, based on eight 1G x 8-bit FBGA components per module.The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
? Power Supply: VDD=1.2V Typical
? VDDQ = 1.2V Typical
? VPP - 2.5V Typical
? VDDSPD=2.2V to 3.6V
? Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
? Low-power auto self refresh (LPASR)
? Data bus inversion (DBI) for data bus
? On-die VREFDQ generation and calibration
? Single-rank
? On-board I2 serial presence-detect (SPD) EEPROM
? 16 internal banks; 4 groups of 4 banks each
? Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
? Selectable BC4 or BL8 on-the-fly (OTF)
? Fly-by topology
? Terminated control command and address bus
? PCB: Height 1.18? (30.00mm)
? RoHS Compliant and Halogen-Free
